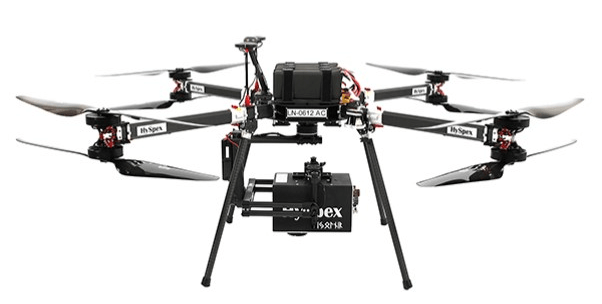

Unmanned Aerial System (UAS) with Hyperspectral Camera

The BlackSquare X8 multi-rotor drone is equipped with the HySpex Mjolnir Hyperspectral Imaging System for Unmanned Aerial Vehicle. Its Hyperspectral Camera covers a wide spectrum of ultraviolet/visible/near infrared measurements (400 - 2500nm). It requires 3 x 3 meters of space for taking off and landing. There is no need for a launch ramp or landing strip near the project.

Key Features

  • 1091 mm X8 Frame
  • PixHawk flight controller
  • 12kg payload capacity
  • <25 kg MTOW with Mjolnir and gimbal
  • Up to 25 min flight endurance with 8kg payload
  • Two GPS/GLONASS receivers for redundancy
  • 28” carbon propellers
  • One flight case

Unmanned Aerial System with Optical Camera

The T-Drone M-1000 is equipped with two cameras: one optical (Sony RX100 iii) and one thermal (Optris 640 Pi). The thermal camera covers the spectrum of 8 to 14 µm and has a resolution of 640x480 pixels.

Key Features

  • Take-off weight of 8 kg
  • T-1000 UAS platform
  • Ground Control Software for advanced flight plans
  • QGroundControl with HereLink Controller
  • 2-axis digital stabilizer
  • Here3 GPS with L1
  • CubeOrange with ADSB

Unmanned Aerial System with Thermal Camera

The Parrot ANAFI Thermal is equipped with RGB/Thermal Camera, suitable for use in the collection of surface temperature data and the creation of ultra-high resolution (< 5 cm) topographic and orthomosaic products in the visible spectrum.

Key Features

  • Lightweight UAS (315 g)
  • CMOS 1/2.4", 21 MP Optical Sensor
  • FLIR Lepton 3.5 Thermal Microbolometer (Radiometric) Sensor
  • Spectral band: 8-14 µm
  • Thermal sensitivity: < 50 mK (0.050 °C)
  • RAW and JPEG image format for use in photogrammetry analysis
